Define a Connection to an External Storage System

For most File Activities, you need to define a connection to an external storage system. Depending on the activity, you will save a file, retrieve a file, delete a file, or create a folder in the external storage system.

NOTES:
- Connection names and descriptions should be meaningful. You might want to use a connection in other activities, so it's important for you to be able to identify and understand what a connection is from the name and description.
- The path separator requirements for each storage system must also be used for base paths, source paths, file paths, and so on, in activities that require a connection to an external storage system. For example, if the file storage system you select supports forward slash (/) path separators, then all subsequent paths must also use forward slashes:
https://{externalstoragesystem/{basepath}/{relativepath}/{file}


File Activities that Use an External Storage System

Supported External Storage Systems

  • Azure Blob Storage
  • Azure File Storage
  • FTP
  • SFTP
  • Network Storage

Azure Blob Storage

Specifications and Limitations

Parameter
Description
Pattern

CloudBlobContainer.ListBlobs Method: a string containing the blob name prefix.

Path and File Name Restrictions
Naming and Referencing Shares, Directories, Files, and Metadata
Path Separator
/
Supports Folder Hierarchy
No, each container can only contain blobs.

Azure Blob Storage Configuration Parameters

Parameter
Description
Connection Name
The name you select for the connection.
End Point
URL to the Azure Blob storage.
Credentials
The protocol, account name, and account key for your Azure Blob Storage account. If you select this, SAS is not relevant.
Shared Access Signature (SAS)
Signature that grants limited access to objects in the storage account (system) to other clients, without exposing your account key. If you select this, Credentials is not relevant.



Azure File Storage

Specifications and Limitations

Parameter
Description
Pattern

CloudFileDirectory.ListFilesAndDirectories Method: a string containing the file or directory name prefix.

Path and File Name Restrictions
Naming and Referencing Shares, Directories, Files, and Metadata
Path Separator
/
Supports Folder Hierarchy
Yes


Azure File Storage Configuration Parameters

Parameter
Description
Connection Name
The name you select for the connection.
End Point
URL to the Azure Blob storage.
Base Path
Sub-folder in the end point. Should be a shared folder on the server.
Credentials
The protocol, account name, and account key for your Azure File Storage account. If you select this, SAS is not relevant.
Shared Access Signature (SAS)
Signature that grants limited access to objects in the storage account (system) to other clients, without exposing your account key. If you select this, Credentials is not relevant.


FTP

Specifications and Limitations

Parameter
Description
Pattern
  • Wildcards: used to specify multiple files or directories whose names match a pattern.
  • FileSet:  used to combine multiple matching criteria (such as all ".txt" and ".csv" files) and also specify exclude criteria.
Path and File Name Restrictions
FTP does not specify a standard pathname convention. You need to follow the file-naming conventions of the file systems involved in the file transfer.
Path Separator
/
Supports Folder Hierarchy
Yes

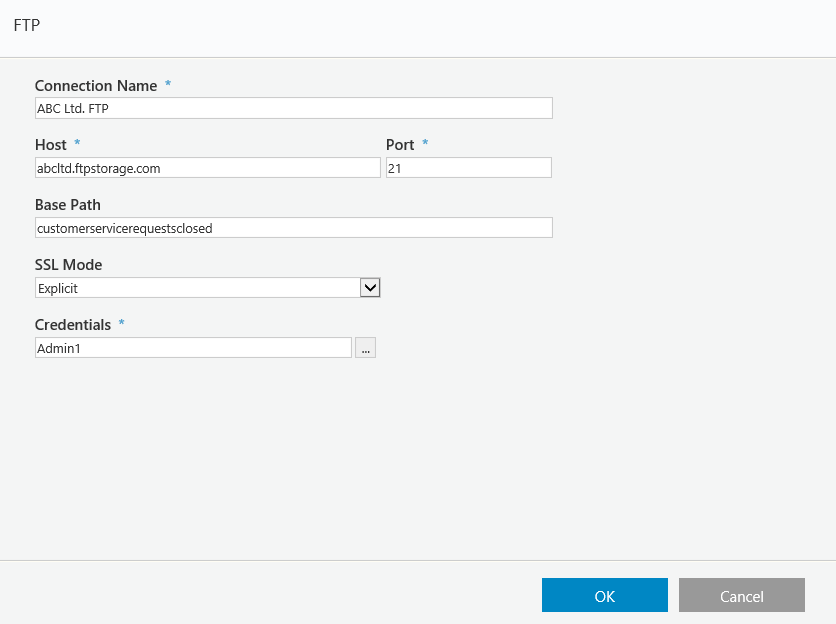

FTP Configuration Parameters

Parameter
Description
Connection Name
The name you select for the connection.
Host
URL to the FTP server.
Port
Port for the FTP server.
Base Path
Sub-folder in the FTP server. Should be a shared folder on the server. Make sure the user defined in the credentials has permission on the shared folder.
SSL Mode
  • Implicit: Assumes that the server is expecting everything encrypted using SSL. This means that when the client first connects to the server it will immediately negotiate the SSL connection on the command connection. Normally, implicit connections are also on a different port, such as port 990.
  • Explicit: A normal FTP connection is established, usually on the standard port 21. However, after connecting, the client will send a command to switch to SSL mode. This command is "AUTH SSL". When this command is sent, the server will respond normally, and then establish an SSL connection.
Credentials
Name, user name, and password for the FTP server. See screenshot below for details.


SFTP

Specifications and Limitations

Parameter
Description
Pattern
  • Wildcards: used to specify multiple files or directories whose names match a pattern.
  • FileSet:  used to combine multiple matching criteria (such as all ".txt" and ".csv" files) and also specify exclude criteria.
Path and File Name Restrictions
FTP does not specify a standard pathname convention. You need to follow the file-naming conventions of the file systems involved in the file transfer.
Path Separator
/
Supports Folder Hierarchy
Yes


SFTP Configuration Parameters

Parameter
Description
Connection Name
The name you select for the connection.
Host
URL to the SFTP server.
Port
Port for the SFTP server.
Base Path
Sub-folder in the SFTP server. Should be a shared folder on the server. Make sure the user defined in the credentials has permission on the shared folder.
SSL Mode
  • Implicit: Assumes that the server is expecting everything encrypted using SSL. This means that when the client first connects to the server it will immediately negotiate the SSL connection on the command connection. Normally, implicit connections are also on a different port, such as port 990.
  • Explicit: A normal FTP connection is established, usually on the standard port 21. However, after connecting, the client will send a command to switch to SSL mode. This command is "AUTH SSL". When this command is sent, the server will respond normally, and then establish an SSL connection.
Credentials
Name, user name, and password for the FTP server. See screenshot below for details.
Authentication Mode
  • NTLM: alksjdf
  • Kerberos v5: a;lkjsdf
  • Certificate
Certificate File Location
Path for the certificate.
Certificate Store Location
Path for the certificate store.
Store Name
Name of the certificate store.
Find by
Parameter to search by.
Value to Find
Value you want to find.


Network Storage

Specifications and Limitations

Parameter
Description
Pattern
Directory.GetFiles Method
Path and File Name Restrictions
Path Separator
\
Supports Folder Hierarchy
Yes


Network Storage Configuration Parameters

Parameter
Description
Connection Name
The name you select for the connection.
Host
Name or URL of the network.
Base Path
Sub-folder in the network storage. Should be a shared folder on the server. Make sure the user defined in the credentials has permission on the shared folder. You cannot store files in the base path (folder). You need to a folder below this one to store files.
Credential Type
  • Application
  • Impersonated
  • Stored
Credentials
Name, user name, and password for the FTP server. See screenshot below for details.


Credentials

In order to access some external storage systems require credentials. The process for adding a new credential is the same for each external storage system.
